LX-10SUB MKII
Active Dynamic Drive IB Subwoofer

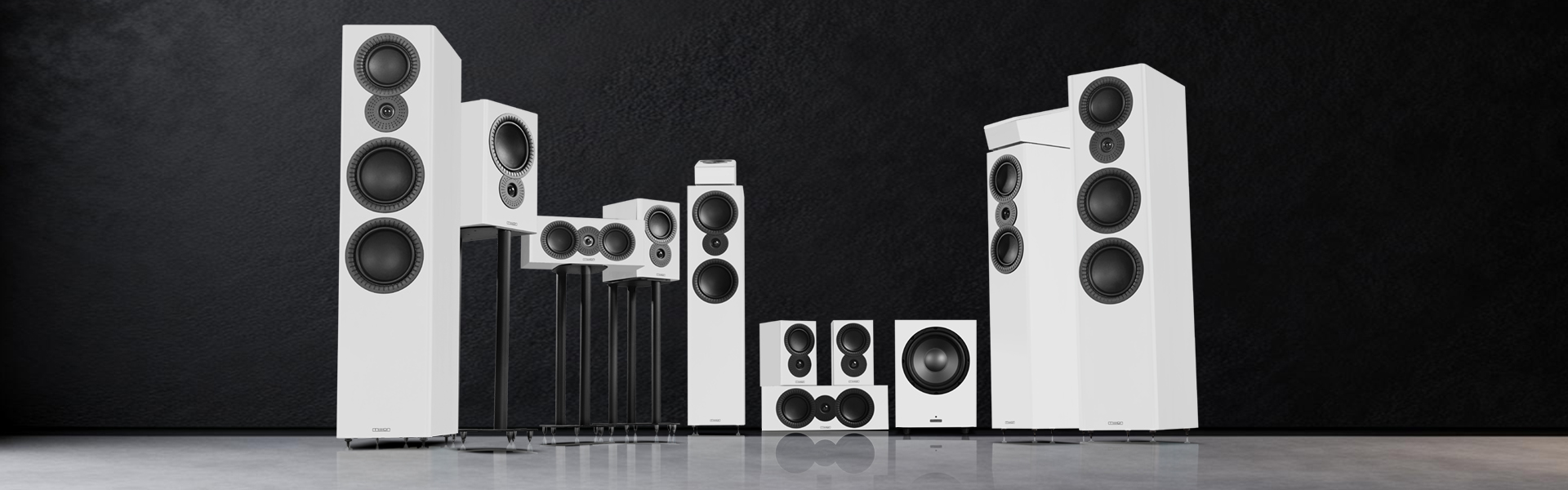

Mission is proud to introduce the LX-10SUB MKII to complement the latest LX MKII Series of loudspeakers.

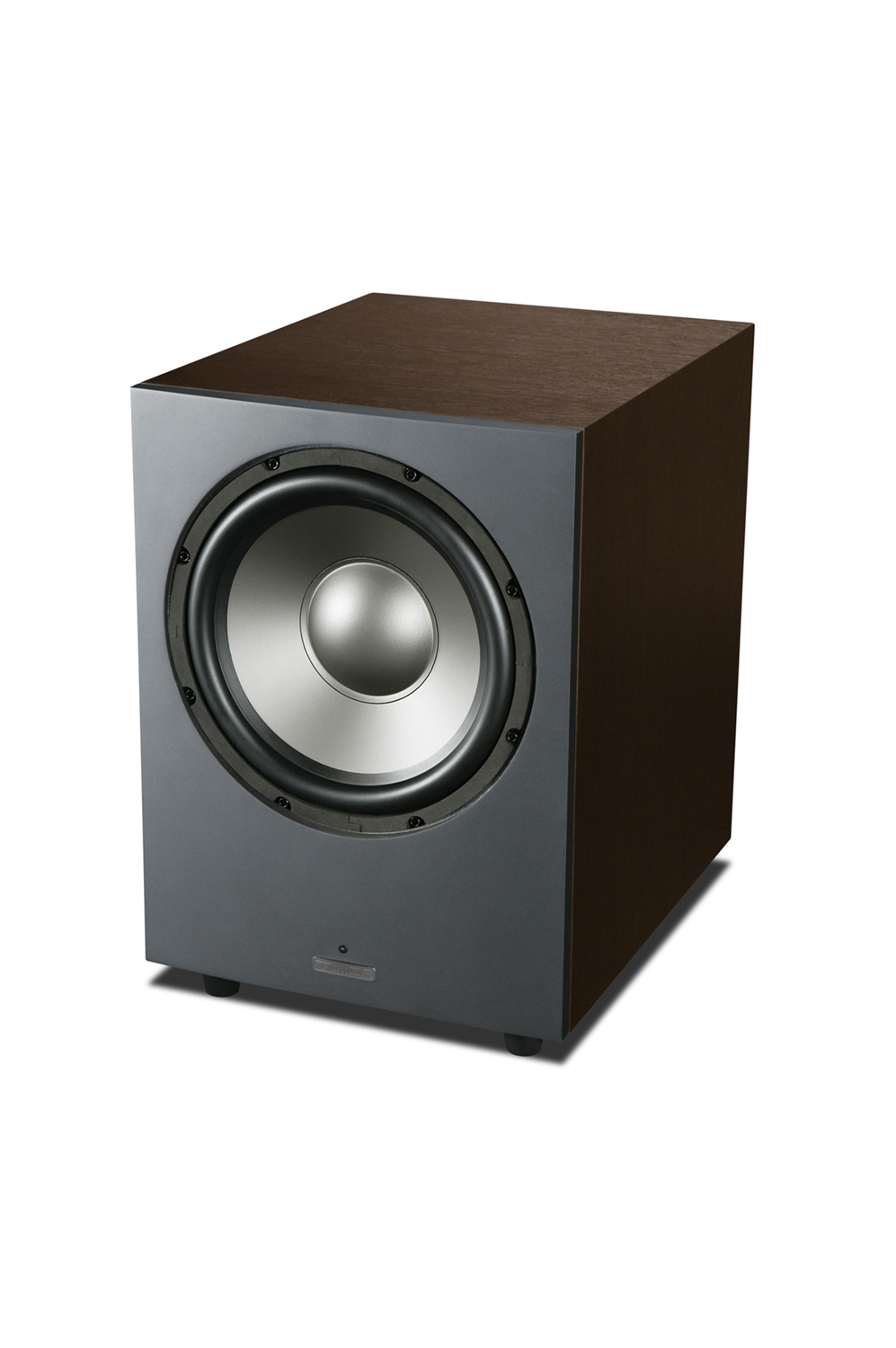

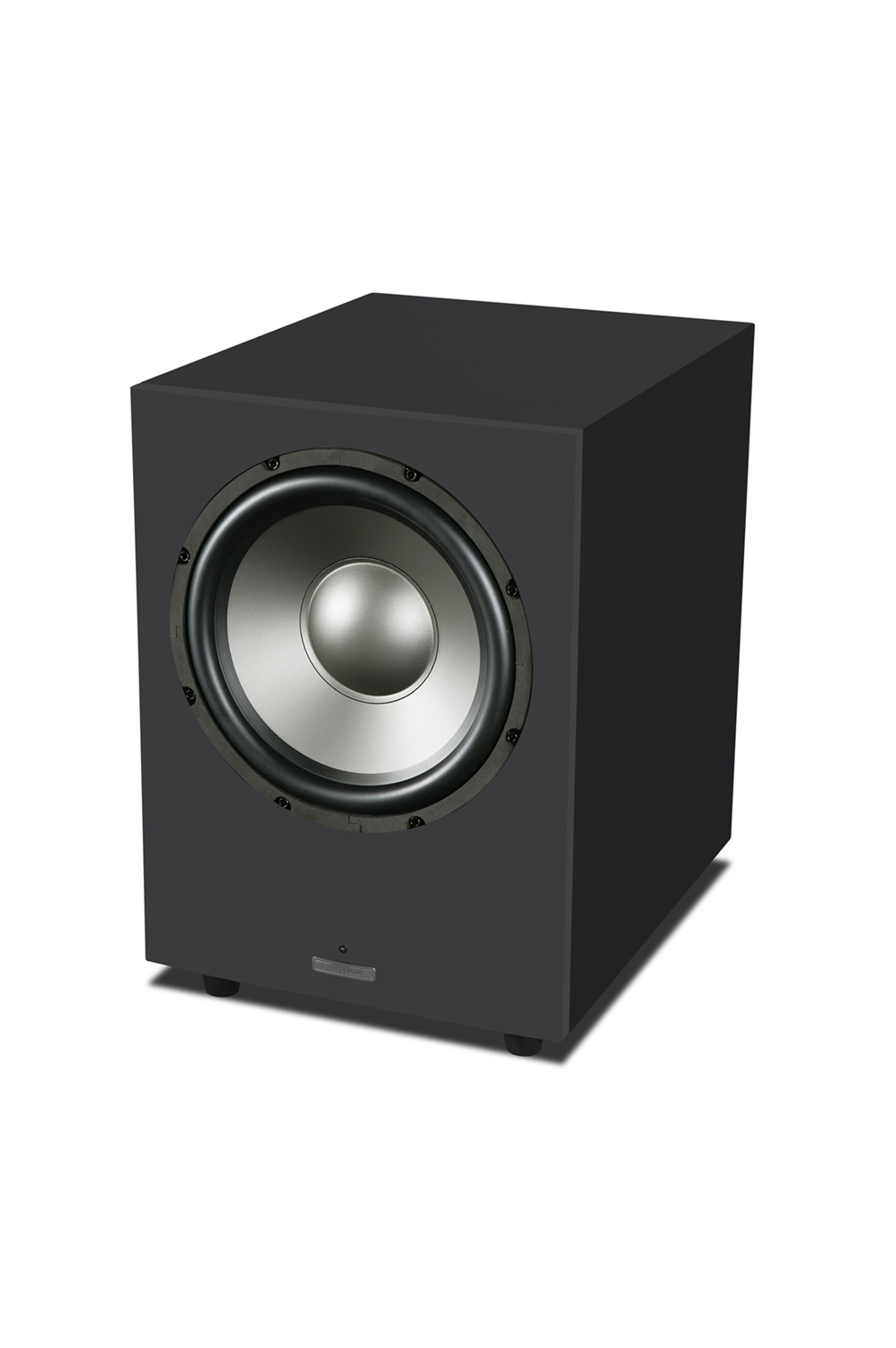

Perfect for a LX MKII Series home-theatre system or musical bass extension in 2-channel applications, the LX-10SUB MKII utilises a 10-inch (250mm) long throw bass driver with astounding bass impact. Based on the same award-winning system found in the best-selling ZX-12SUB, the LX-10SUB MKII also sports fantastic new Lux Black and Lux White finish options, as well as classic walnut pearl, to perfectly match the aesthetics of the stunning LX MKII Series loudspeakers.
HIGH POWERED PRESICION
High Power Amplifier
The built-in amplifier is optimised for high impact at low frequencies. The fast response and high-power performance is perfect for movies or music.
No-Presses Paper Cones
A specially engineered 10-inch (250mm) paper cone with increased self-damping properties offers an increased structural rigidity of the cone itself, for a fuller performance and massive bass impact.
Low Pass Filter Slope
A continuously adjustable slop, from 35Hz to 150Hz (@33dB), enables seamless acoustic integration with your speaker’s performance
High Sensitivity & Versatility

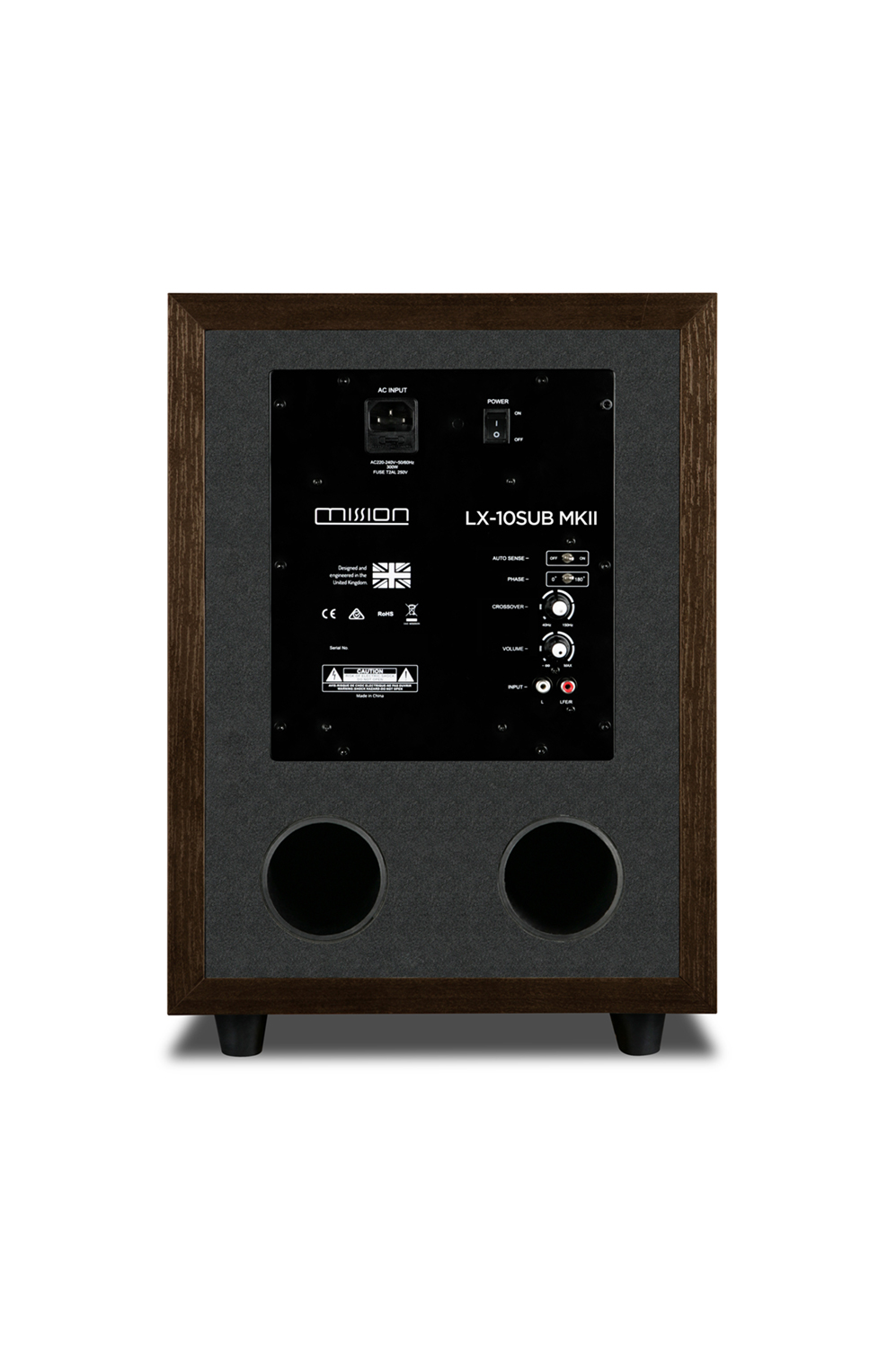

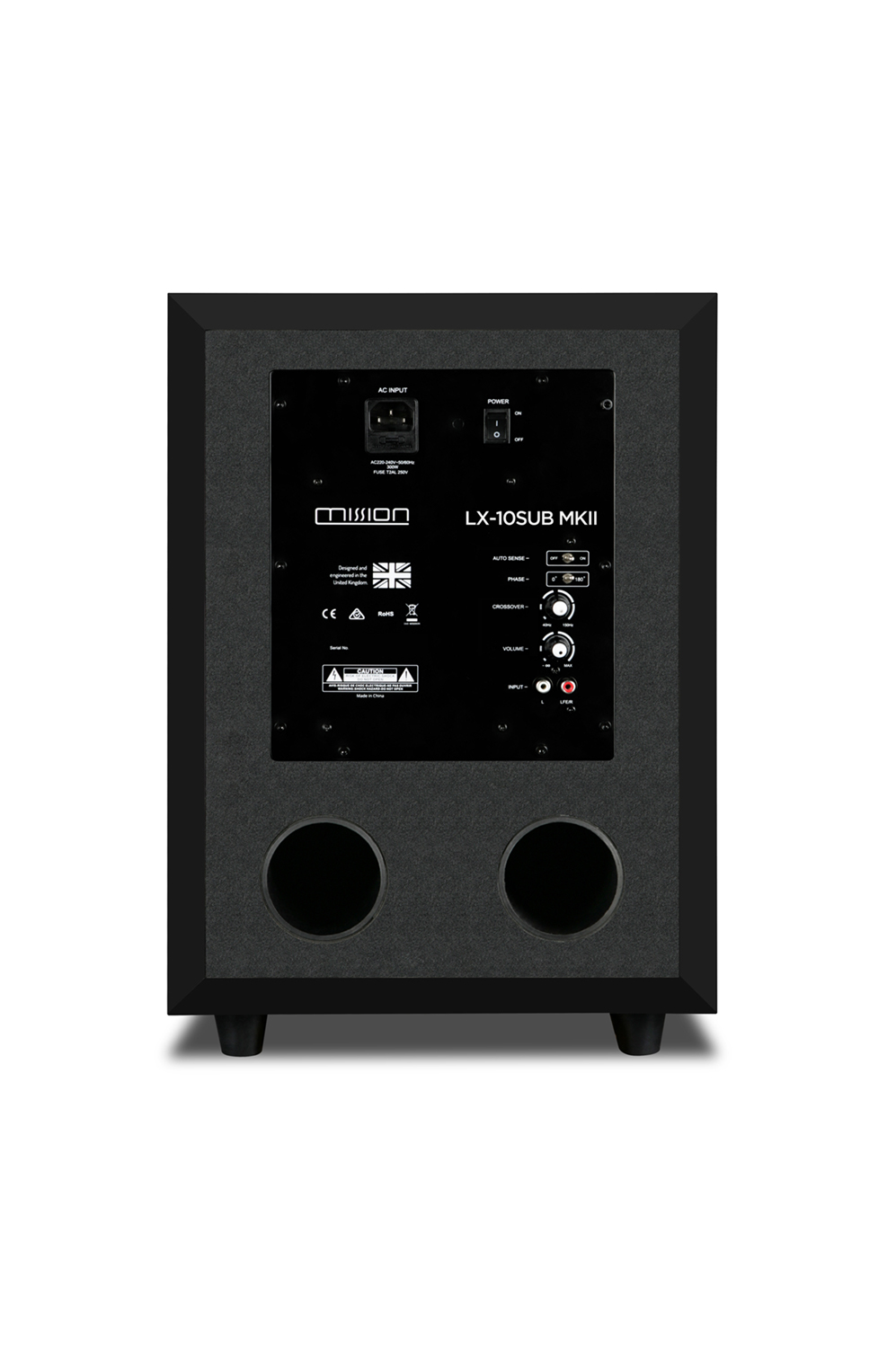

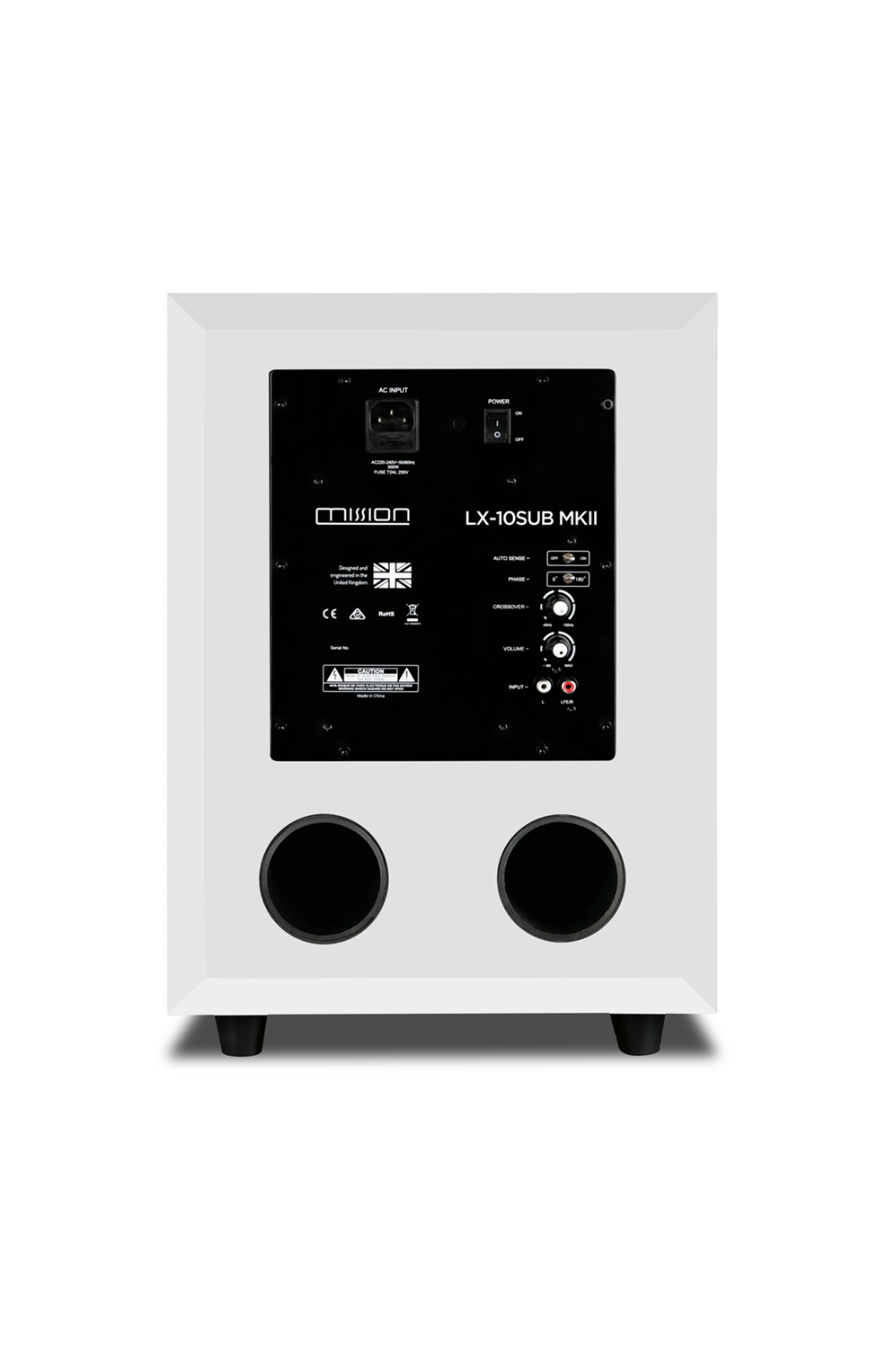

Low level inputs, output connections and a dedicated LFE input are provided. Additionally, the auto power sensor is sensitive enough to detect incoming signals of extremely low level for automatic activation of the subwoofer, when required.
ACTIVE DYNAMIC-DRIVE
LX-10SUB Specifications
| Description / Format | Active Dynamic-Drive IB Subwoofer System |
| Drive Units | 1 x (10") 250mm Cone Long-throw |
| Frequency Response | 40- 200Hz ±3dB |
| Amplifier Power Output | 200W |
| Peak Power Output | 350W |
| Line Input Sensitivity | 200mv For Maximum Output |
| Crossover Range | 30 - 150Hz |
| Inputs | Stereo Line In (2 x RCA Phono) Mono (LFE) Line In (RCA Phono) |
| Input Impedance | Line Input 10kΩ LFE 5kΩ |
| Signal-to-noise Ratio (S/N) | ≥5dB |
| Avg. Max Output @1m | 110dB |
| Features | Phase inversion, Auto on-off |
| Dimensions | Height: (412+35)mm (with feet) Width: 312mm Depth: (392+15)mm |
| Net Weight | 16kg |
| Gross Weight | 18.5kg / carton |

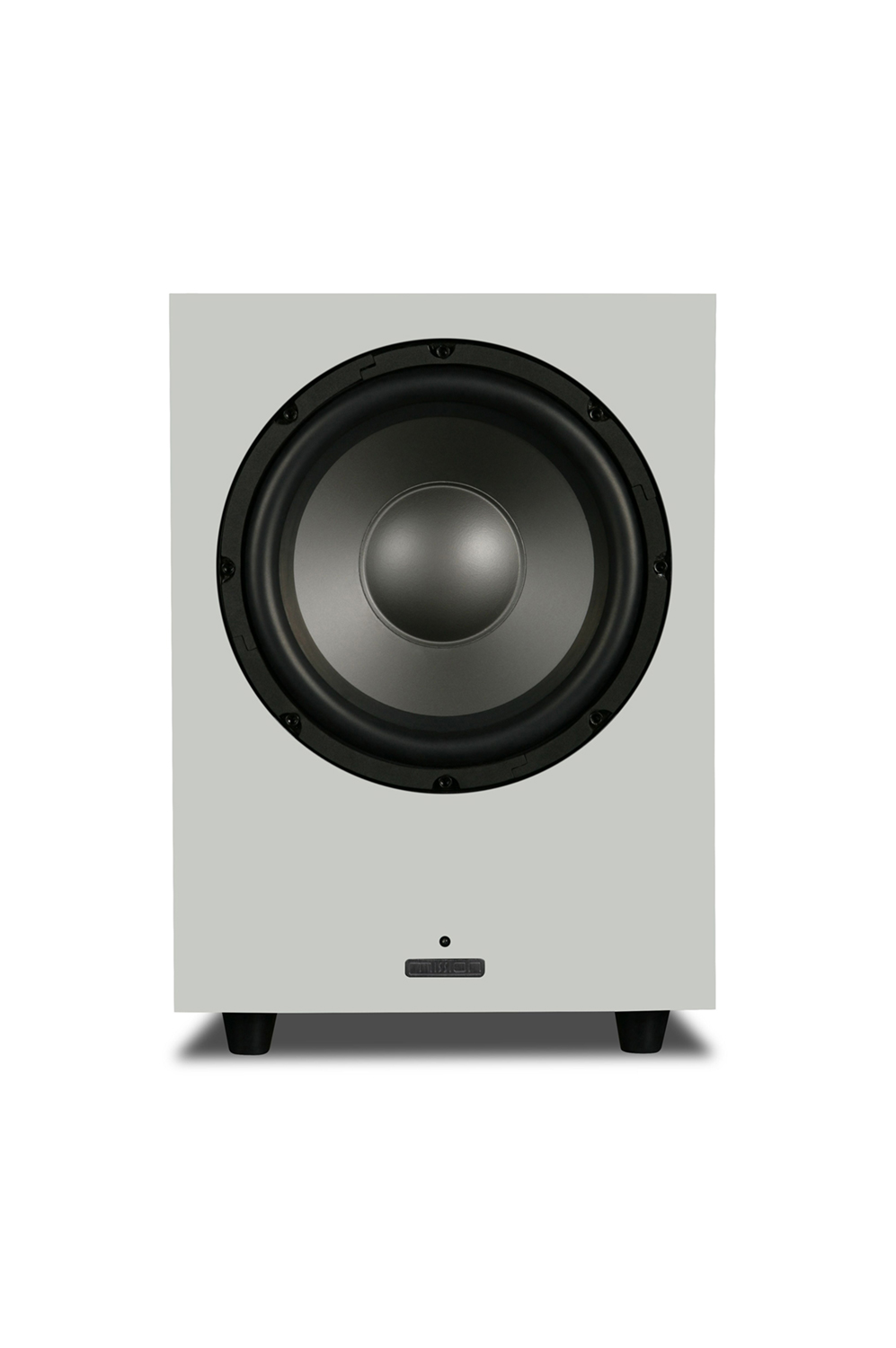

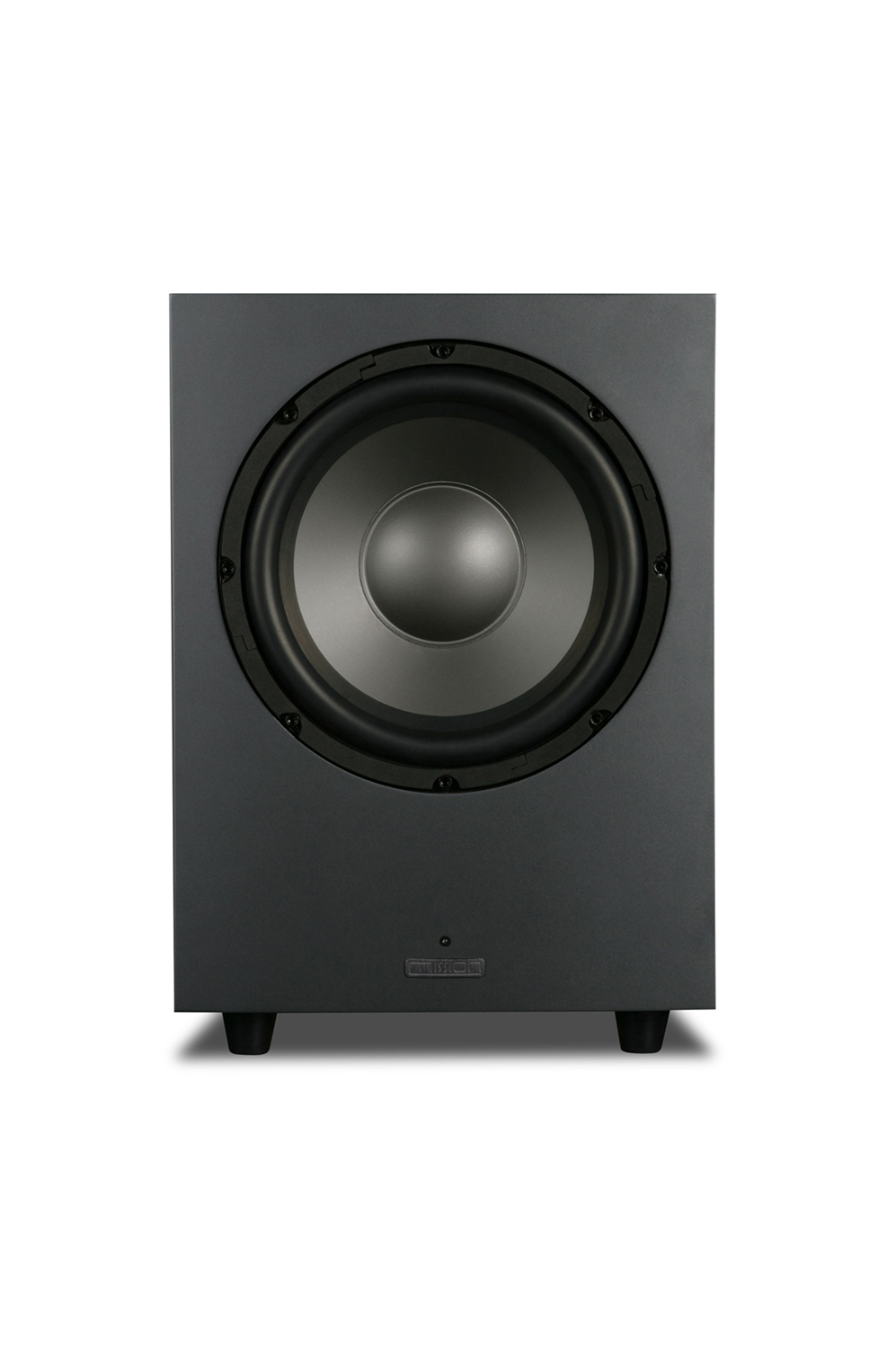

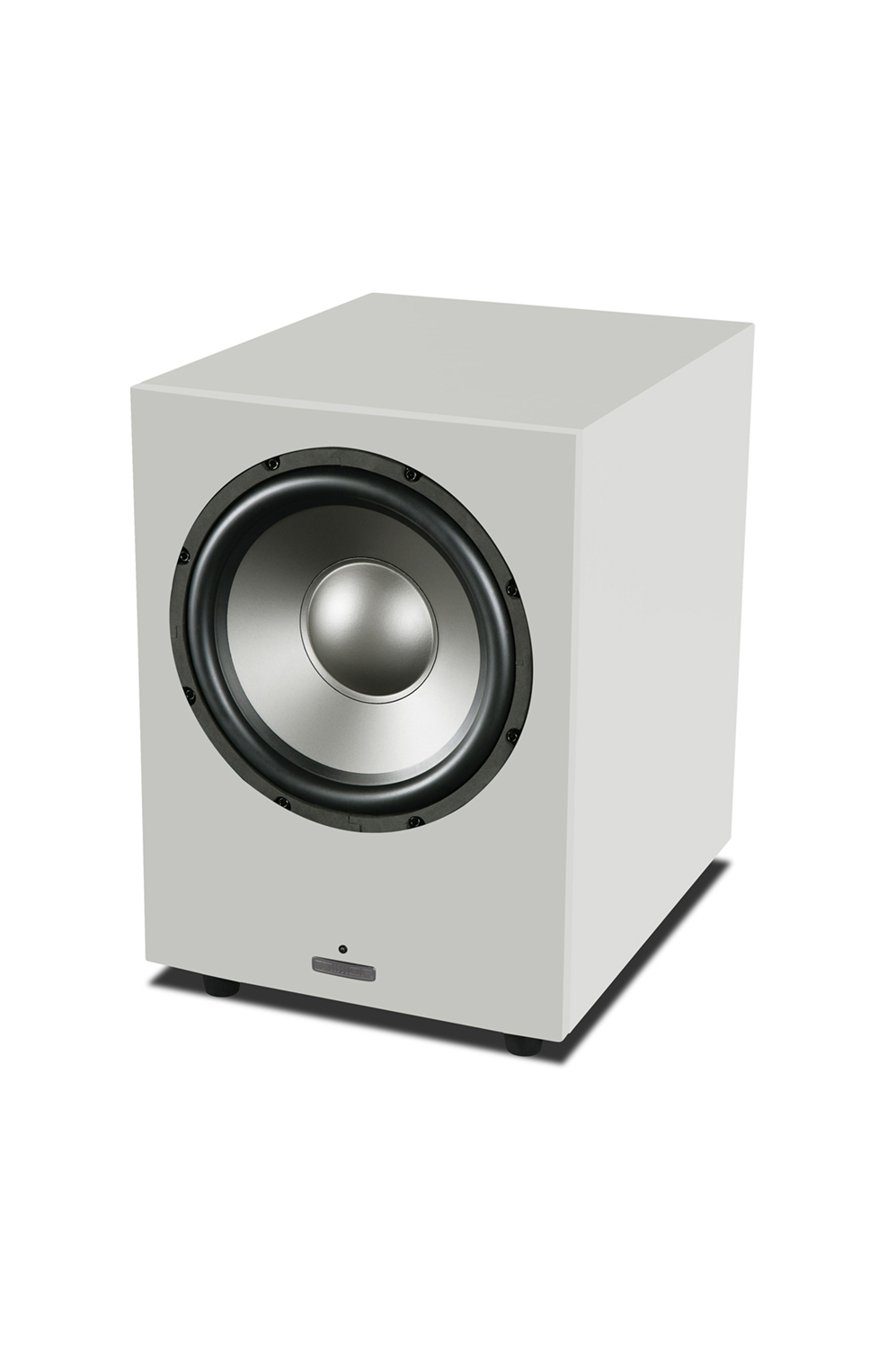

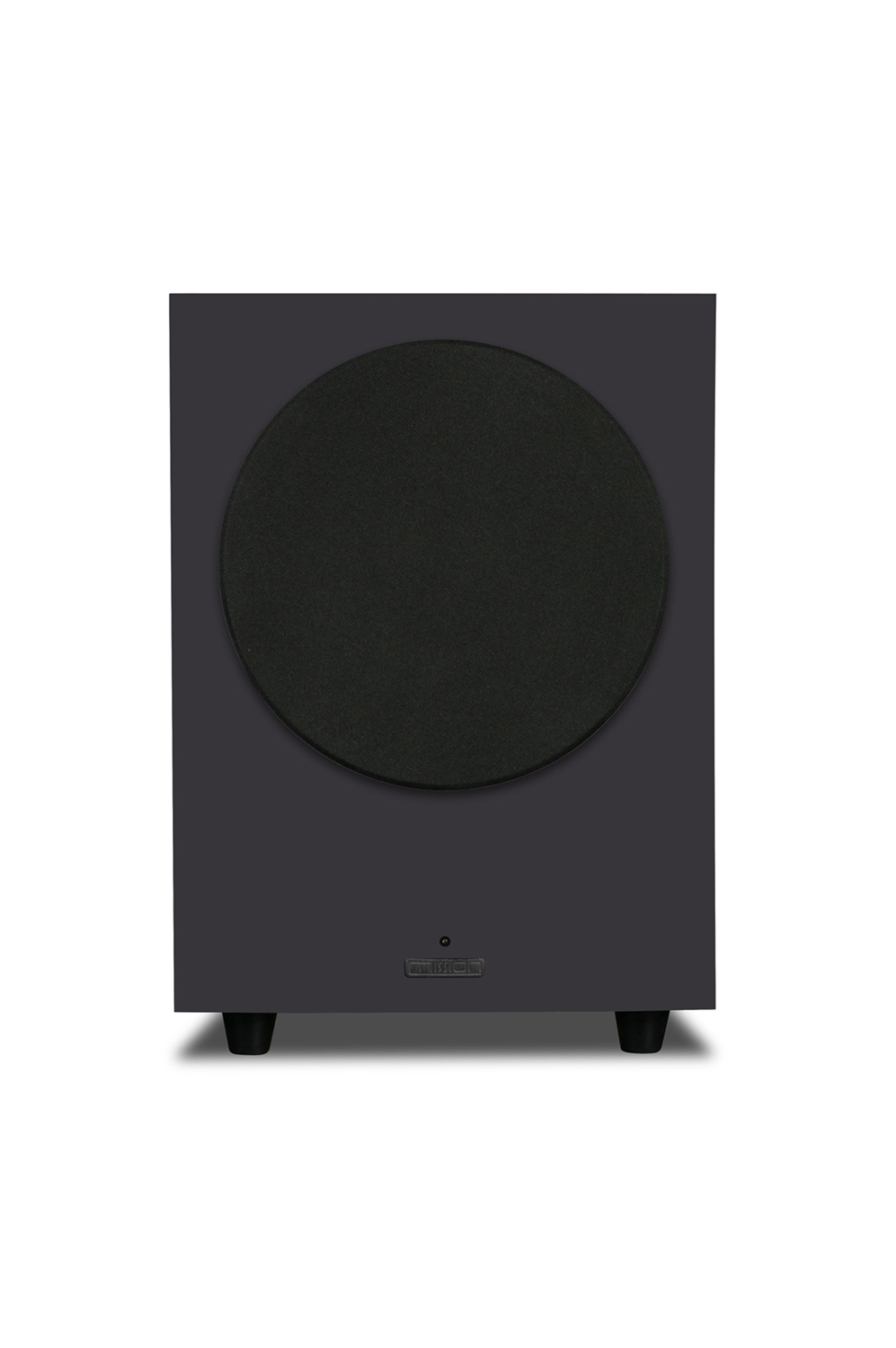

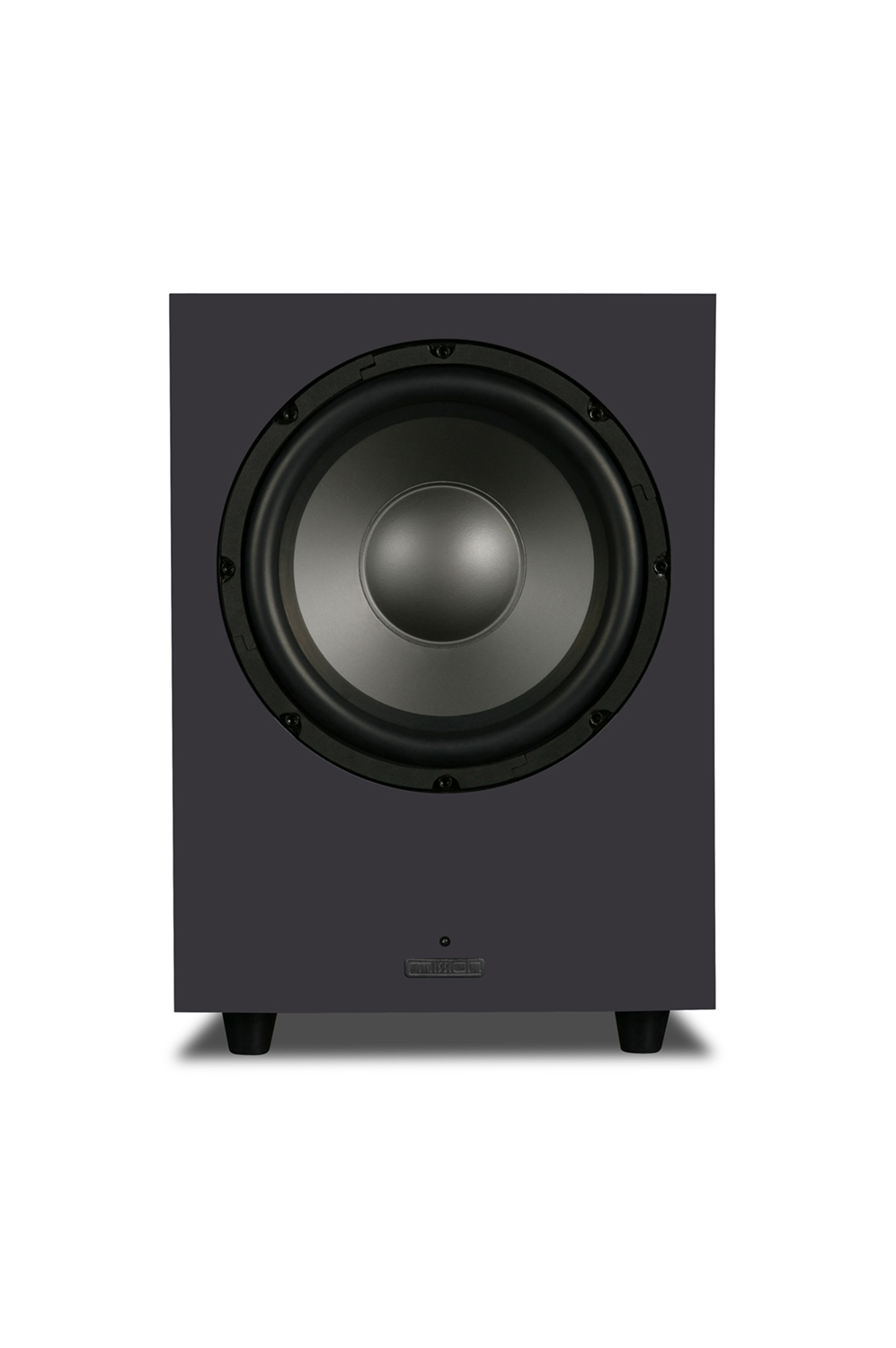

| Finishes | Cabinet: Walnut Pearl / Lux White / Lux Black |
